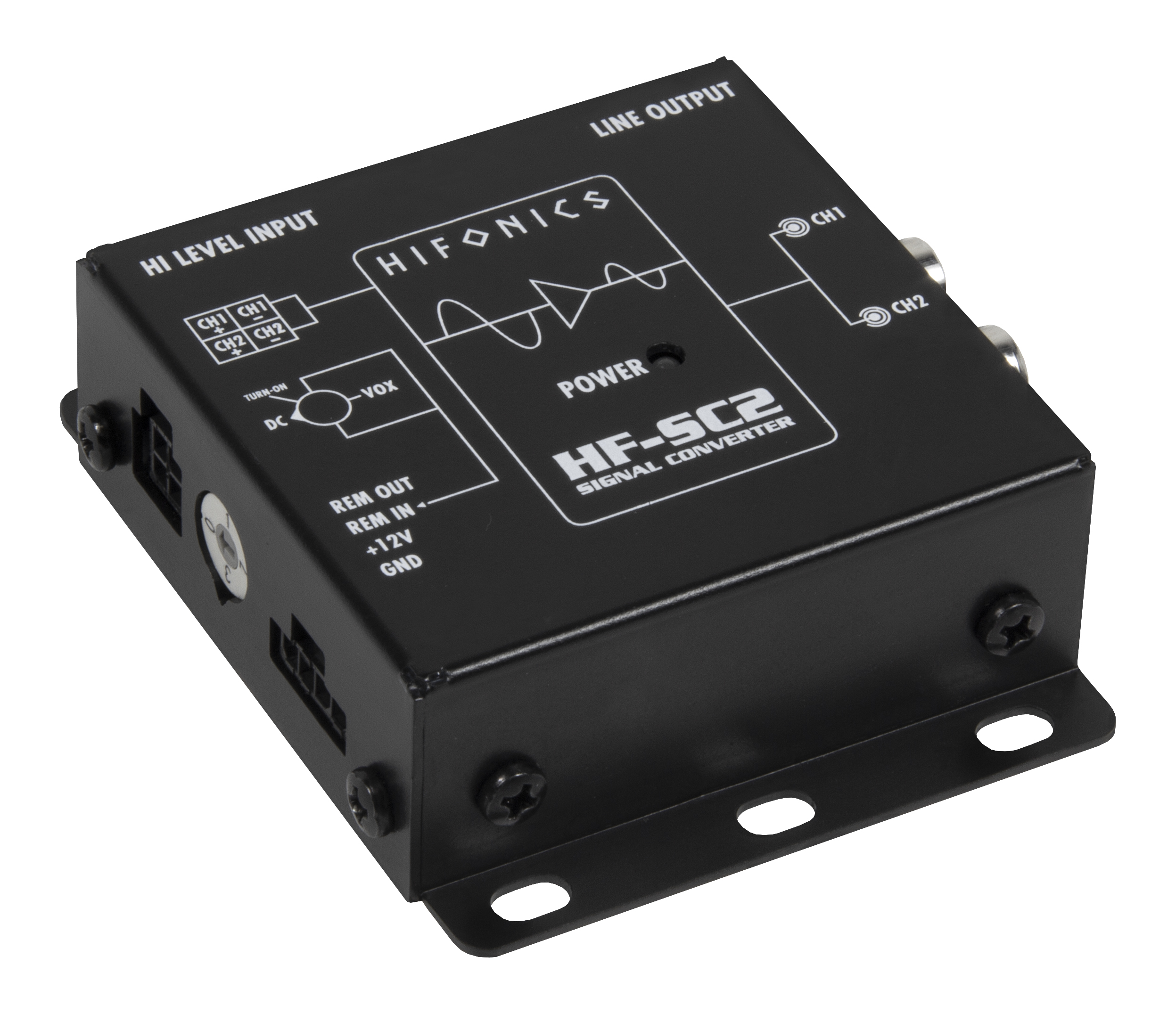

Hifonics HF-SC2

HiFonics signal converters impress with their absolutely brilliant sound characteristics. This is no accident; the developers placed the utmost importance on outstanding technical specifications right from the design stage. And these specifications are truly impressive: sensationally high signal-to-noise ratios of 115-121 dB combined with very low total harmonic distortion of 0.00*1% impressively demonstrate that these converters are genuine highlights. They are designed for connection to conventional car radios that deliver up to 50 W/RMS per channel at 2 ohms.

As a further special feature, the multi-channel converters have a summing function. This circuit is essential for many new vehicles when the music signal cannot be accessed “as a single unit,” but rather the frequency ranges for the factory-installed speakers are electrically separated. A conventional converter would be completely useless in this case. With the HF-SC converters, the split output signals of the factory radio can be easily recombined by activating the “MIXED” function via a switch. The sophisticated electronics then generate a full-range signal at the outputs, which can be used to optimally drive external DSPs or amplifiers.

Thanks to EPS®, the converters can also be easily connected to factory radios that have a load detection circuit. As an additional feature for interference suppression, “Floating Ground” can be activated via a jumper.

Technical Specifications:

• 2-Channel High-to-Low Level Converter with Summing Function
• Automatic Power-On Function
• Remote Out (Generates a Power-On Signal for Additional Devices)
• Start/Stop Ready
• EPS® Protection Circuit
• THD+N 0.00*1%
• 2x RCA Outputs (Unbalanced) at 5 V RMS
• 2x High-Level Inputs up to 10 V RMS
• Signal-to-Noise Ratio >115 dB
• Frequency Range 5–60 kHz
• Floating Ground Jumper
• Dimensions: 82 x 25 x 65/72 mm
